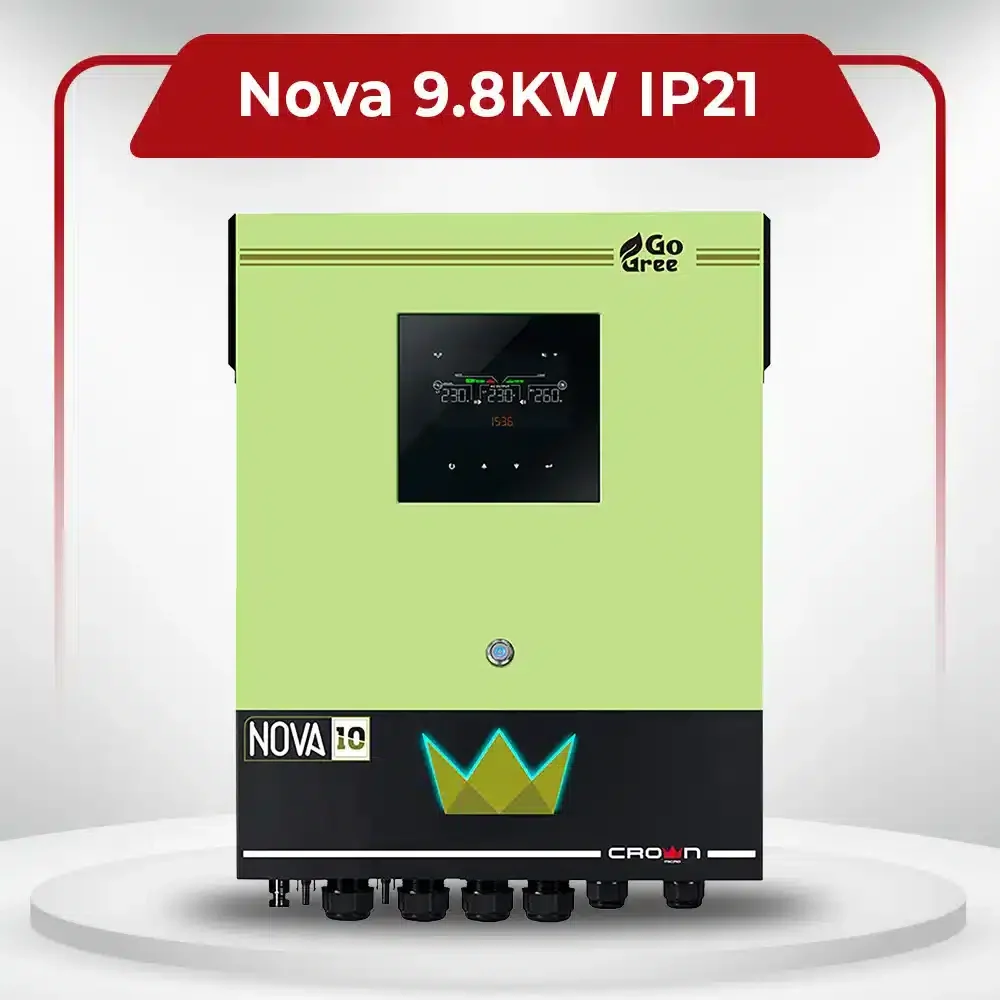

Crown Micro NOVA-9.8kW 48V PV-12000W MPPT Solar Inverter

Name: Crown Micro NOVA-9.8kW 48V PV-12000W MPPT Solar Inverter
Brand: Crown Micro
SKU: ST-NOVA-9-8KW
Price: 186981 BDT
Availability: InStock

9800 VA / 9800 WRated power

48 VDCBattery

93%Max efficiency

Key features

Pure sine wave solar inverter with MPPT
Built-in Wi-Fi & reserved BMS communication
Dual outputs for smart and normal load
Supports maximum PV input 40A
Battery independent with anti-dust kit
CrownMicro NOVA-9.8KW 48V PV-12000W MPPT Solar Inverter

Model: NOVA-9.8KW
Category: Solar Inverters, Off-Grid Inverters, Single Phase Inverters

৳ 186,981 ~~৳ 194,460~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The CrownMicro NOVA-9.8KW inverter is a reliable solar power solution built for both residential and commercial applications. Designed with advanced MPPT solar charging, pure sine wave technology, and smart monitoring features, it ensures clean, stable, and efficient energy delivery.

Key Benefits

Pure sine wave output for safe operation of sensitive devices.
93% peak efficiency ensures maximum energy conversion.
Wi-Fi monitoring and BMS communication support included.
Dual AC outputs for smart load and normal load management.
Battery-independent design for flexible system integration.
MPPT solar charger with wide 90–450V DC input range.
Handles up to 12000W PV array power for large installations.
Parallel operation supported for up to 6 units.
Built-in anti-dust kit enhances inverter longevity.
Configurable AC/PV output usage timer and priority settings.

This inverter is an ideal choice for homes and businesses looking for dependable solar backup power. It integrates seamlessly with solar panels and a durable battery bank for optimized performance.

At a glance

BrandCrown Micro

ModelNOVA-9.8KW

Rated power9800 VA / 9800 W

Battery48 VDC

Max efficiency93%

Quote this system

General

Model NOVA-9.8KW

Selectable Voltage Range 90–280 VAC (home appliances) / 170–280 VAC (computers)

PV / DC Input

Max. PV Array Power 12000 W

MPPT Range @ Operating Voltage 90–450 VDC

Max. PV Input Current 27 A × 2 (Max 40 A)

Max. Solar Charge Current 150 A

AC Output & Grid

Rated Power 9800 VA / 9800 W

Input Voltage 230 VAC

Frequency Range 50 Hz/60Hz (auto sensing)

Output AC Voltage Regulation 230 VAC ± 5%

Surge Power 22000 VA

Transfer Time 10 ms (PCs), 20 ms (appliances)

Battery

Parallel Capability Yes, up to 6 units

Battery Voltage 48 VDC

Floating Charge Voltage 54 VDC

Overcharge Protection 63 VDC

Max. AC Charge Current 150 A

Max. Charge Current 150 A

Efficiency

Max. Efficiency 93%

Communication & Display

Communication USB / RS232 / RS485 / Wi-Fi / Dry-contact

Physical & Environmental

Dimensions (D×W×H) 147.4 × 432.5 × 553.6 mm

Weight 20 kg

Operating Humidity 5% to 95% (non-condensing)

Operating Temperature -10°C to 50°C

Storage Temperature -15°C to 60°C

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: NOVA-9.8KW
Selectable Voltage Range: 90–280 VAC (home appliances) / 170–280 VAC (computers)
Max. PV Array Power: 12000 W
MPPT Range @ Operating Voltage: 90–450 VDC
Max. PV Input Current: 27 A × 2 (Max 40 A)
Max. Solar Charge Current: 150 A
