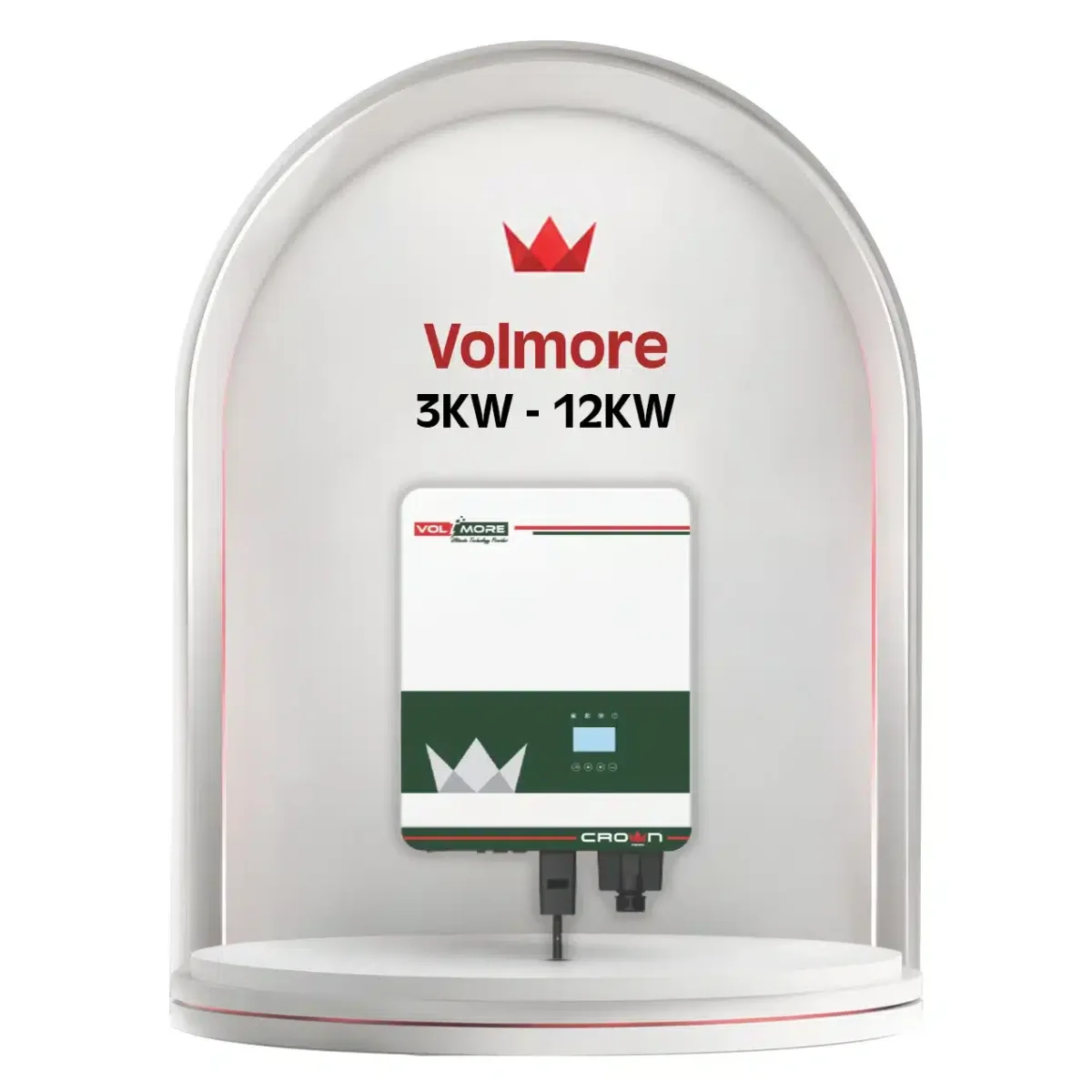

Crown Micro VOLTMORE-VMGI-10kW Three Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE-VMGI-10kW Three Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-10KW
Availability: OutOfStock

2MPPT

10000 VA / 10000 WRated power

650 VVoltage

98.4%Max efficiency

Key features

SREDA Approved (Net Metering Program)
Three-phase MPPT based solar inverter
Max. efficiency 98.4% / Euro 98.1%
Wide MPPT range: 140V – 1000V
IP66 protection, natural cooling system
Wi-Fi / 4G optional smart monitoring

Model: VMGI-10KW
Category: Solar Inverters, On-Grid Inverters, Three Phase Inverters

The Crown Micro VOLTMORE-VMGI-10KW is a powerful three-phase on-grid inverter engineered for large residential and commercial solar installations. With a peak efficiency of 98.4% and Euro efficiency of 98.1%, it ensures maximum solar utilization. The inverter features a wide MPPT voltage range (140V–1000V) and IP66 protection for reliable performance in diverse conditions.

Key Benefits

Delivers up to 98.4% maximum efficiency and Euro efficiency of 98.1%.
Three-phase inverter ensures balanced, high-power energy output.
Wide MPPT voltage range (140–1000V) ensures compatibility with solar arrays.
Multiple built-in protections: anti-islanding, surge, reverse polarity, insulation detection, and short circuit.
Optional Wi-Fi/4G monitoring for real-time performance tracking.
Natural cooling system ensures quiet, efficient operation.
Durable IP66 enclosure for reliable outdoor installation.
Comes with a 10-year warranty for peace of mind.

This inverter is ideal for larger-scale residential and commercial PV systems. It integrates seamlessly with solar panels and can be paired with a battery bank for hybrid use.

At a glance

BrandCrown Micro

ModelVMGI-10KW

MPPT2

Rated power10000 VA / 10000 W

Voltage650 V

Max efficiency98.4%

Quote this system

General

Model VMGI-10KW

DC Switch Yes

Topology Transformer-less

PV / DC Input

Max. DC Voltage 1100 V

Start-up Voltage 250 V

MPPT Voltage Range 140–1000 V

Number of MPPTs 2

Max. Input Current per MPPT 15 A

Max. Short-Circuit Current per MPPT 20 A

AC Output & Grid

Rated Power 10000 VA / 10000 W

Nominal AC Output Power 10000 W

Max. AC Output Power 11000 VA

Nominal AC Voltage 400/230V 3P+N+PE

AC Grid Frequency Range 50/60Hz (±5 Hz)

Max. Output Current 16.0 A

Power Factor 0.8 leading – 0.8 lagging

THDi <3%

Battery

Nominal Voltage 650 V

Efficiency

Max. Efficiency 98.4%

European Efficiency 98.1%

Protection

Protections Anti-islanding, Overcurrent, Reverse polarity, Surge, Insulation, Short circuit

Surge Protection DC Type II; AC Type II optional

IP Rating IP66

Communication & Display

Communication RS-485 / Wi-Fi / 4G

Display LCD

Physical & Environmental

Dimensions 380 × 428 × 161 mm

Weight 15 kg

Operating Temperature -25°C to +60°C

Cooling Natural cooling

Max. Operating Altitude 4000 m

Operating Humidity 0–100% (non-condensing)

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-10KW
DC Switch: Yes
Topology: Transformer-less
Max. DC Voltage: 1100 V
Start-up Voltage: 250 V
MPPT Voltage Range: 140–1000 V
