Crown Micro

SKU ST-VMGI-125KW

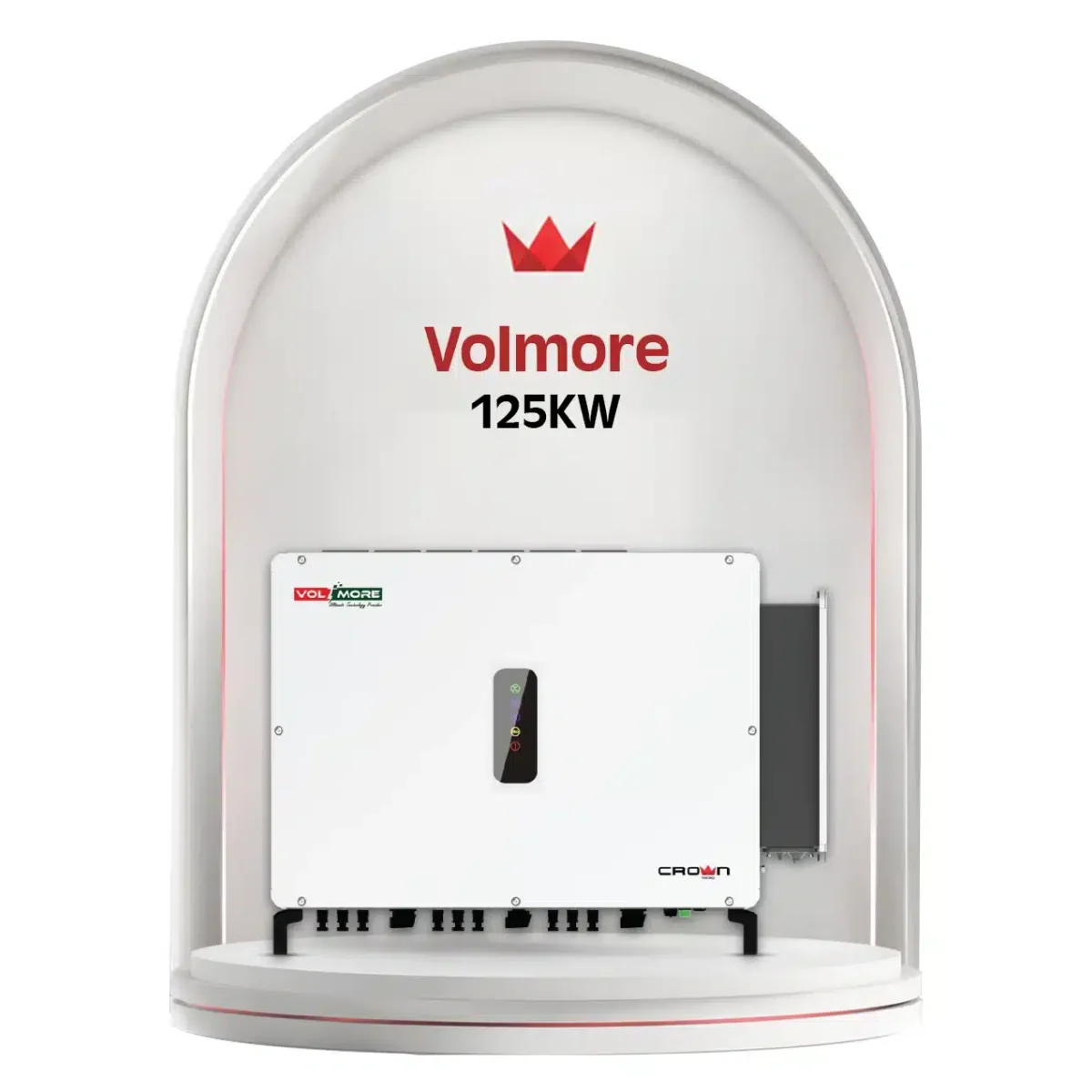

Crown Micro VOLTMORE VMGI-125kW Three Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE VMGI-125kW Three Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-125KW
Price: 659368 BDT
Availability: InStock

125 kWRated power

650 VVoltage

98.7%Max efficiency

IP66Protection

Key features

SREDA Approved (Net Metering Program)
On-grid three phase MPPT based inverter
Max efficiency up to 98.7%
IP66 outdoor protection with AFCI safety
Smart monitoring via Wi-Fi/4G & APP

Model: VMGI-125KW
Category: Solar Inverters, On-Grid Inverters, Three Phase Inverters

৳ 659,368 ~~৳ 685,743~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The Crown Micro VOLTMORE VMGI-125KW is a powerful utility-grade on-grid three phase solar inverter, designed for large industrial and commercial projects. With 125kW nominal output, advanced MPPT technology, and comprehensive protection features, it ensures reliable high-capacity solar energy conversion.

Key Benefits

On-grid three phase MPPT based inverter for large-scale solar systems.
Delivers 125kW nominal AC power with 125kVA maximum capacity.
High efficiency up to 98.7% with Euro efficiency of 98.5%.
8 MPPT trackers with wide voltage range (200–1000V) for maximum flexibility.
Comprehensive protection: DC switch, surge, short-circuit, insulation, and residual current monitoring.
Advanced functions including AFCI, PID recovery, and Night SVG.
IP66-rated housing ensures safe outdoor operation.
Supports Wi-Fi/4G communication, LED and Bluetooth APP for monitoring.

At a glance

BrandCrown Micro

ModelVMGI-125KW

Rated power125 kW

Voltage650 V

Max efficiency98.7%

ProtectionIP66

Quote this system

General

Model VMGI-125KW

Topology Transformerless

PV / DC Input

Max. DC Voltage 1100 V

Start-up Voltage 350 V

MPPT Voltage Range 200–1000 V

MPPT Trackers 8

Strings per MPPT 2

Max. Input Current per MPPT 40 A

Max. Short-Circuit Current per MPPT 60 A

AC Output & Grid

Nominal AC Output Power 125 kW

Max. AC Apparent Power 125 kVA

Nominal AC Voltage 230 V/400V, 3 W+PE, 3 W+N+PE

AC Grid Frequency 50/60Hz (±5 Hz)

Max. Output Current 181.2 A

Power Factor 0.8 leading – 0.8 lagging

THD <3%

Battery

Nominal Voltage 650 V

Efficiency

Max. Efficiency 98.7%

European Efficiency 98.5%

Protection

IP Rating IP66

Communication & Display

Communication RS485 / PLC / Wi-Fi / 4G

Display LED, Bluetooth + APP

Physical & Environmental

Dimensions 965 × 705 × 365 mm

Weight 85 kg

Operating Temperature -30°C ~ +60°C

Cooling Fan Cooling

Max. Operation Altitude 5000m (≤4000m derating)

Max. Operation Humidity 0–100% (non-condensing)

Noise ≤75 dB

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-125KW
Topology: Transformerless
Max. DC Voltage: 1100 V
Start-up Voltage: 350 V
MPPT Voltage Range: 200–1000 V
MPPT Trackers: 8
