Crown Micro

SKU ST-VMGI-15KW

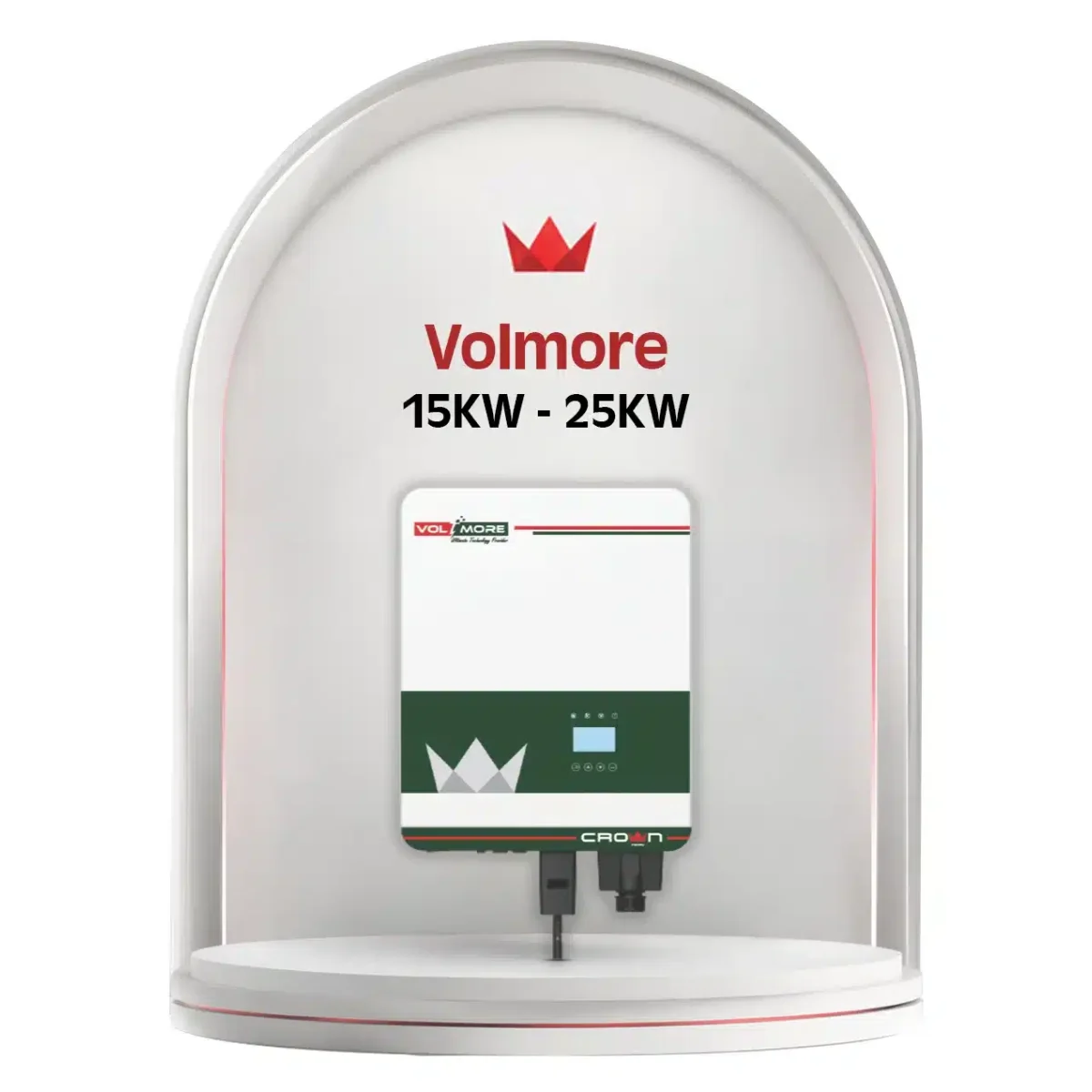

Crown Micro VOLTMORE-VMGI-15kW Three Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE-VMGI-15kW Three Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-15KW
Price: 136170 BDT
Availability: InStock

15000 VA / 15000 WRated power

650 VVoltage

98.6%Max efficiency

IP66Protection

Key features

SREDA Approved (Net Metering Program)
Three-phase MPPT based solar inverter
Max. efficiency 98.6% / Euro 98.2%
Wide MPPT range: 140V – 1000V
IP66 protection with fan cooling system
Wi-Fi / 4G optional smart monitoring

Model: VMGI-15KW
Category: Solar Inverters, On-Grid Inverters, Three Phase Inverters

৳ 136,170 ~~৳ 141,616~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The Crown Micro VOLTMORE-VMGI-15KW is a heavy-duty three-phase solar inverter designed for industrial and large commercial installations. With a maximum efficiency of 98.6% and Euro efficiency of 98.2%, it guarantees superior solar energy conversion. Built with IP66 protection and fan cooling, it ensures reliability under tough environmental conditions.

Key Benefits

Delivers up to 98.6% maximum efficiency and 98.2% Euro efficiency.
Three-phase inverter ensures stable and high-capacity output.
Wide MPPT operating range from 140V to 1000V.
Dual MPPT trackers with 2 strings per tracker enhance flexibility.
Advanced safety protections: anti-islanding, surge, reverse polarity, insulation detection, and short circuit.
Fan cooling system prevents overheating for long-lasting operation.
Wi-Fi/4G optional for remote monitoring and control.
Rugged IP66 protection suitable for outdoor environments.
10-year warranty ensures peace of mind.

At a glance

BrandCrown Micro

ModelVMGI-15KW

Rated power15000 VA / 15000 W

Voltage650 V

Max efficiency98.6%

ProtectionIP66

Quote this system

General

Model VMGI-15KW

DC Switch Yes

Topology Transformer-less

PV / DC Input

Max. DC Voltage 1100 V

Start-up Voltage 250 V

MPPT Voltage Range 140–1000 V

Number of MPPT Trackers 2

Strings per MPPT Tracker 2

Max. Input Current per MPPT 30 A/15A

Max. Short-Circuit Current per MPPT 40 A/20A

AC Output & Grid

Rated Power 15000 VA / 15000 W

Nominal AC Output Power 15000 W

Max. AC Output Power 16500 VA

Nominal AC Voltage 400 V 3L+N

AC Grid Frequency Range 50/60Hz

Max. Output Current 23.9 A

Power Factor 0.8 leading – 0.8 lagging

THDi <3%

Battery

Nominal Voltage 650 V

Efficiency

Max. Efficiency 98.6%

European Efficiency 98.2%

Protection

Protections Anti-islanding, Overcurrent, Reverse polarity, Surge, Insulation, Short circuit

Surge Protection DC Type II; AC Type II / Type III optional

IP Rating IP66

Communication & Display

Communication RS-485 / Wi-Fi / 4G

Display LCD

Physical & Environmental

Dimensions 380 × 438 × 193 mm

Weight 20.7 kg

Operating Temperature -25°C to +60°C

Cooling Fan cooling

Max. Operating Altitude 4000 m

Operating Humidity 0–100% (non-condensing)

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-15KW
DC Switch: Yes
Topology: Transformer-less
Max. DC Voltage: 1100 V
Start-up Voltage: 250 V
MPPT Voltage Range: 140–1000 V
