Crown Micro

SKU ST-VMGI-1KW-SP

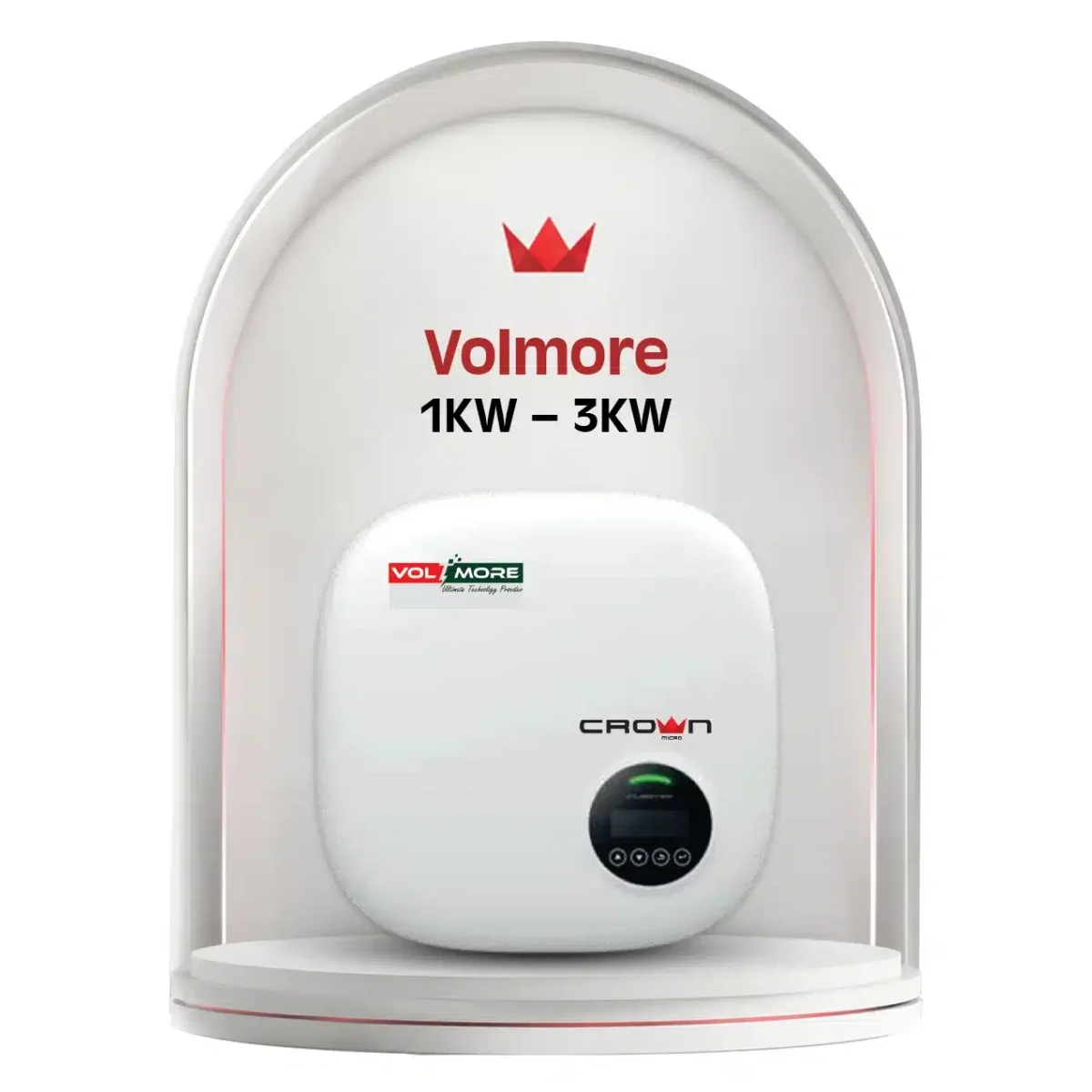

Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE-VMGI-1KW-SP Single Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-1KW-SP
Price: 38286 BDT
Availability: InStock

1MPPT

1000 VA / 1000 WRated power

380 VDCVoltage

97.0%Max efficiency

Key features

SREDA Approved (Net Metering Program)
Single-phase on-grid MPPT solar inverter
Max. efficiency 97.0% / Euro 96.5%
Wi-Fi & 4G monitoring options available
IP66 protection, outdoor-ready design
Full safety protections with DC switch

Model: VMGI-1KW-SP
Category: Solar Inverters, On-Grid Inverters, Single Phase Inverters

৳ 38,286 ~~৳ 39,817~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The Crown Micro VOLTMORE-VMGI-1KW-SP is a compact, reliable, and high-efficiency on-grid solar inverter designed for residential and small commercial PV installations. Featuring a wide MPPT range, IP66 weatherproof rating, and integrated protections, it ensures long-term durability and maximum energy harvest from your solar system.

Key Benefits

High efficiency: up to 97.0% (Euro efficiency 96.5%).
Wide MPPT tracking range (60–560V DC) for versatile PV setups.
Compact, lightweight design with IP66 enclosure for outdoor use.
Optional Wi-Fi and 4G modules for smart monitoring via app.
Comprehensive protections: DC switch, anti-islanding, surge, and overcurrent protection.
Transformer-less topology for lightweight, reliable performance.
LCD with Bluetooth App for easy monitoring and control.

At a glance

BrandCrown Micro

ModelVMGI-1KW-SP

MPPT1

Rated power1000 VA / 1000 W

Voltage380 VDC

Max efficiency97.0%

Quote this system

General

Model VMGI-1KW-SP

DC Switch Yes

Topology Transformer-less

PV / DC Input

Max. DC Voltage 600 VDC

Start-up Voltage 60 V

MPPT Voltage Range 60–560 V

Number of MPPTs 1

Strings per MPPT 1

Max. Input Current per MPPT 13 A

Max. Short-Circuit Current per MPPT 15.6 A

AC Output & Grid

Rated Power 1000 VA / 1000 W

Nominal AC Output Power 1000 W

Max. AC Apparent Power 1100 VA

Nominal AC Voltage 230 V L-N

AC Grid Frequency Range 50 Hz / 60 Hz ± 5 Hz

Max. Output Current 4.8 A

Power Factor 0.8 leading – 0.8 lagging

THDi <3%

Output Overcurrent Protection Yes

DC/AC Surge Protection DC Type III / AC Type III

AC Short Circuit Protection Yes

AC Output Terminal Type Quick Connector

Battery

Nominal Voltage 380 VDC

Efficiency

Max. Efficiency 97.0%

European Efficiency 96.5%

Protection

Anti-Islanding Protection Yes

DC Reverse Polarity Protection Yes

Insulation Detection Yes

IP Rating IP66

Communication & Display

Communication RS-485 / Wi-Fi / 4G

Display LCD / Bluetooth + App

Physical & Environmental

Dimensions 350 × 290 × 120 mm

Weight 7.3 kg

Operating Temperature -25°C to +60°C

Cooling Natural Convection

Max. Operating Altitude 4000 m

Operating Humidity 0–100%

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-1KW-SP
DC Switch: Yes
Topology: Transformer-less
Max. DC Voltage: 600 VDC
Start-up Voltage: 60 V
MPPT Voltage Range: 60–560 V
