Crown Micro

SKU ST-VMGI-30KW

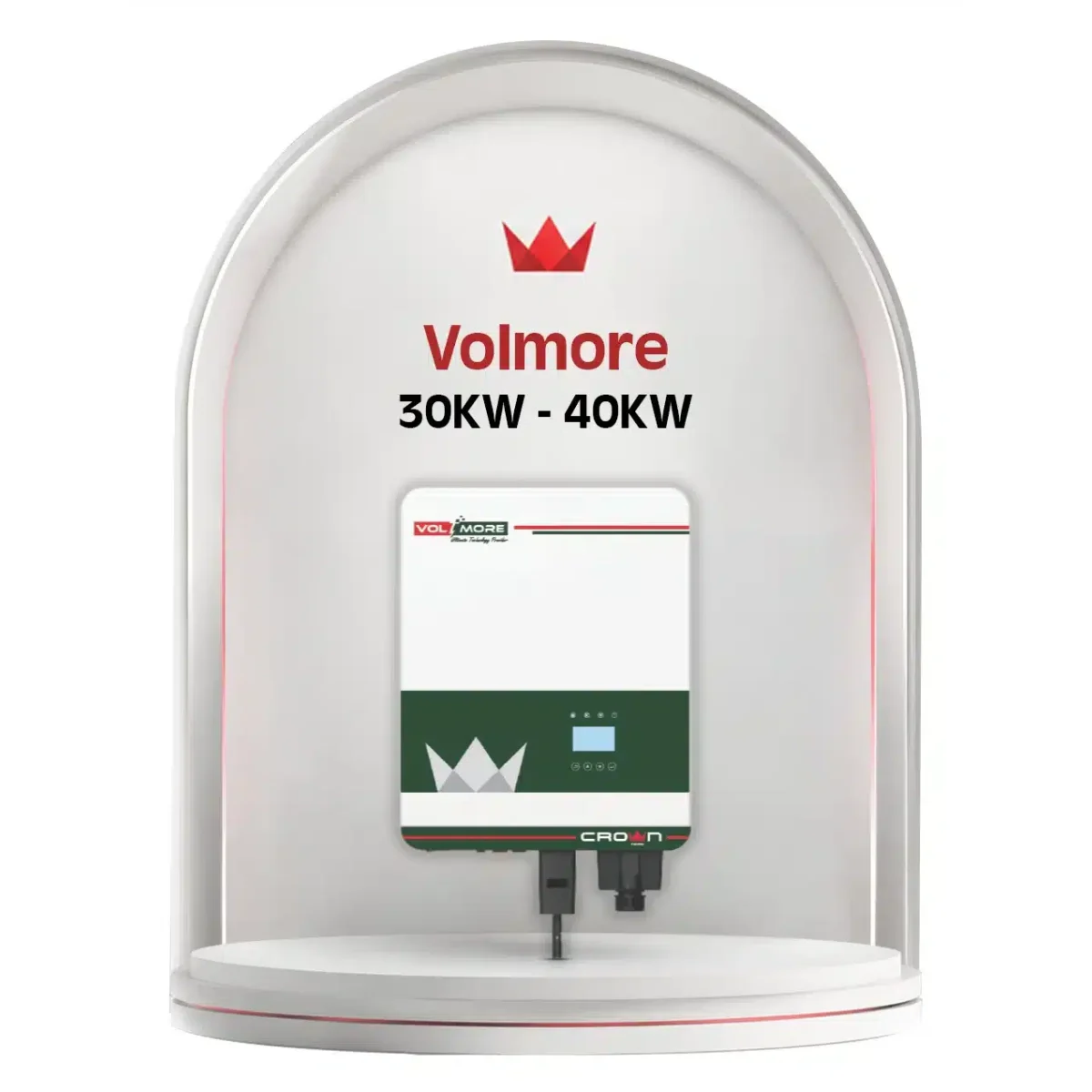

Crown Micro VOLTMORE VMGI-30kW Three Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE VMGI-30kW Three Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-30KW
Price: 216732 BDT
Availability: InStock

30000 W / 30000 VARated power

650 VVoltage

98.7%Max efficiency

Key features

SREDA Approved (Net Metering Program)
On-grid three phase MPPT based inverter
Max efficiency up to 98.7%
IP66 protection for outdoor use
Smart monitoring with Wi-Fi/4G option

Model: VMGI-30KW
Category: Solar Inverters, On-Grid Inverters, Three Phase Inverters

৳ 216,732 ~~৳ 225,401~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The Crown Micro VOLTMORE VMGI-30KW is a high-performance on-grid three phase solar inverter designed to deliver maximum efficiency and reliable solar power conversion for commercial and industrial applications. Engineered with advanced MPPT technology and a durable IP66-rated enclosure, it ensures stable operation under diverse conditions.

Key Benefits

On-grid three phase MPPT based solar inverter for stable energy conversion.
High efficiency up to 98.7% ensures optimal solar energy utilization.
Wide MPPT voltage range (200V–1000V) for flexible PV array design.
DC switch, anti-islanding, and multiple protection features for safety.
Integrated surge and short-circuit protection for long-term durability.
IP66 protection ensures reliability in outdoor installations.
Wi-Fi/4G plug option for smart remote monitoring.
Compatible with all major PV panel brands and configurations.
Euro efficiency of 98.4% for sustainable energy performance.

At a glance

BrandCrown Micro

ModelVMGI-30KW

Rated power30000 W / 30000 VA

Voltage650 V

Max efficiency98.7%

Quote this system

General

Model VMGI-30KW

PV / DC Input

Recommended Max. PV Input Power 39KW

Max. DC Voltage 1100 V

Start-up Voltage 250 V

MPPT Voltage Range 200–1000 V

MPPT Trackers 3

Strings per MPPT Tracker 2

Max. Input Current per MPPT 30 A

Max. Short-Circuit Current per MPPT 40 A

AC Output & Grid

Rated Power 30000 W / 30000 VA

Nominal AC Output Power 30000 W

Max. AC Output Power 33000 VA

Nominal AC Voltage 230/400V, 3P+N+PE

AC Grid Frequency Range 50/60Hz (±5 Hz)

Max. Output Current 47.8 A

Power Factor 0.8 leading – 0.8 lagging

THD <3%

Battery

Nominal Voltage 650 V

Efficiency

Max. Efficiency 98.7%

European Efficiency 98.4%

Protection

Protection Level IP66

Communication & Display

Communication RS485 / Wi-Fi / 4G

Display LCD

Physical & Environmental

Dimensions 380 × 483 × 223 mm

Weight 25.5 kg

Operating Temperature -25°C ~ +60°C

Cooling Fan Cooling

Max. Operation Altitude 4000m

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-30KW
Recommended Max. PV Input Power: 39KW
Max. DC Voltage: 1100 V
Start-up Voltage: 250 V
MPPT Voltage Range: 200–1000 V
MPPT Trackers: 3
