Crown Micro

SKU ST-VMGI-350KW-2

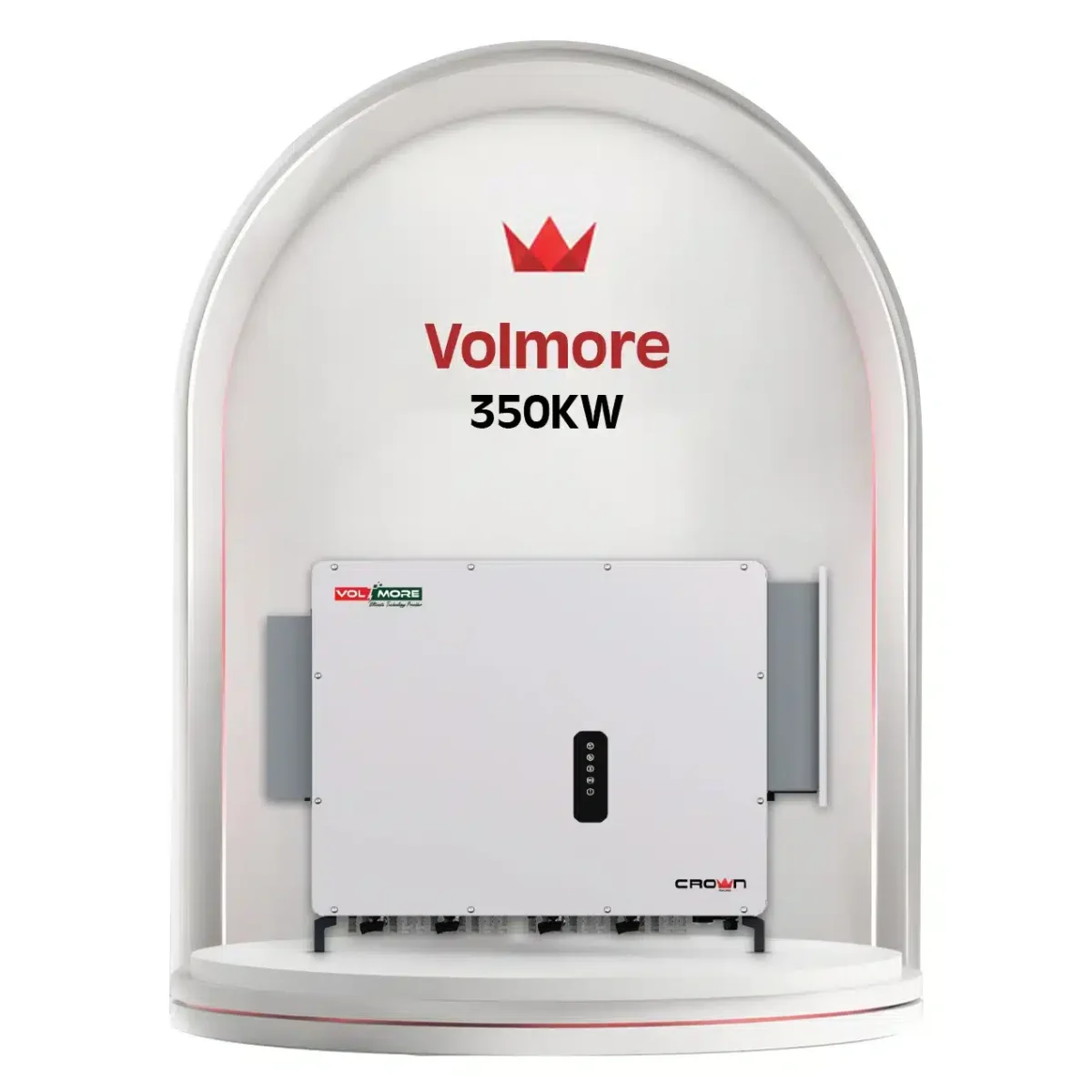

Crown Micro VOLTMORE VMGI-350kW-2 Three Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE VMGI-350kW-2 Three Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-350KW-2
Availability: OutOfStock

12MPPT

350 kWRated power

99%Max efficiency

IP66Protection

Key features

SREDA Approved (Net Metering Program)
On-grid three phase MPPT based inverter
Ultra-high efficiency up to 99%
IP66 protection for outdoor installations
Smart monitoring via PLC / Wi-Fi / 4G

Model: VMGI-350KW-2
Category: Solar Inverters, On-Grid Inverters, Three Phase Inverters

The Crown Micro VOLTMORE VMGI-350KW-2 is a high-efficiency on-grid three phase solar inverter engineered for utility-grade solar plants. With 350kW output power, advanced multi-MPPT control, and robust safety features, it guarantees maximum performance and reliability in large solar projects.

Key Benefits

On-grid three phase MPPT based inverter for utility and industrial solar systems.
Delivers 350kW nominal AC output with 352kVA apparent power.
Ultra-high efficiency up to 99% for superior energy yield.
Wide MPPT voltage range (500V–1500V) with 12 trackers for flexible design.
Optional AFCI and Night SVG function for safety and grid stability.
Comprehensive protections: DC switch, surge, residual current, insulation monitoring.
Supports both Al and Cu cables with Smart I-V curve scanning.
IP66 housing ensures weatherproof outdoor performance.
PLC, Wi-Fi, and 4G connectivity for remote monitoring and control.

At a glance

BrandCrown Micro

ModelVMGI-350KW-2

MPPT12

Rated power350 kW

Max efficiency99%

ProtectionIP66

Quote this system

General

Model VMGI-350KW-2

Topology Transformerless

PV / DC Input

Max. DC Voltage 1500 V

Start-up Voltage 500 V

MPPT Voltage Range 500–1500 V

Number of MPPTs 12

Number of Strings 24

Strings per MPPT 2

Max. Input Current per MPPT 40 A

Max. Short-Circuit Current per MPPT 60 A

AC Output & Grid

Nominal AC Output Power 350 kW

Max. AC Apparent Power 352 kVA

Nominal AC Voltage 800 V, 3 W + PE

Nominal Frequency 50 Hz / 60 Hz (±5 Hz)

Frequency Range 45–55 Hz / 55–65 Hz

Max. Output Current 254 A

Power Factor 0.8 leading – 0.8 lagging

THD <3%

Efficiency

Max. Efficiency 99%

Protection

Protection Devices DC switch, AFCI, Surge, RCD, Overcurrent, Insulation

IP Rating IP66

Communication & Display

Communication RS485 / PLC / Wi-Fi / 4G

Display LED, Bluetooth + APP

Physical & Environmental

Dimensions 1050 × 850 × 393 mm

Weight 130 kg

Operating Temperature -30°C ~ +60°C

Cooling Fan Cooling

Max. Operation Altitude 5000m (≥4000m derating)

Max. Operation Humidity 0–100%

Noise ≤75 dB

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-350KW-2
Topology: Transformerless
Max. DC Voltage: 1500 V
Start-up Voltage: 500 V
MPPT Voltage Range: 500–1500 V
Number of MPPTs: 12
