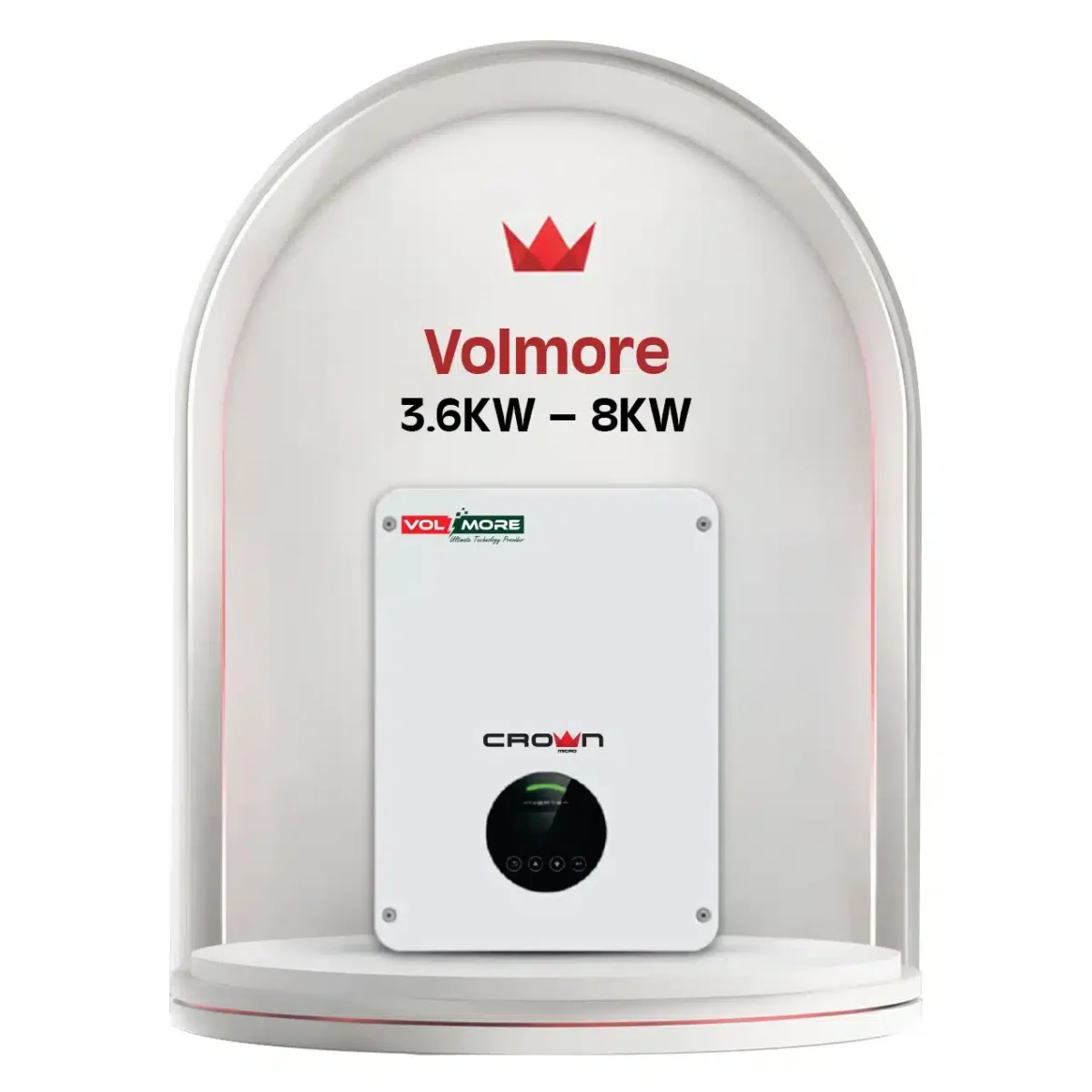

Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter

Name: Crown Micro VOLTMORE-VMGI-5KW-SP Single Phase On-Grid Solar Inverter
Brand: Crown Micro
SKU: ST-VMGI-5KW-SP
Price: 67493 BDT
Availability: InStock

1MPPT

5000 VA / 5000 WRated power

98.3%Max efficiency

IP65Protection

Key features

SREDA Approved (Net Metering Program)
Single-phase on-grid MPPT solar inverter
Max. efficiency 98.3% / Euro 97.9%
Wi-Fi & 4G monitoring options available
IP65 enclosure, natural convection cooling
Built-in protections with DC switch & surge

Model: VMGI-5KW-SP
Category: Solar Inverters, On-Grid Inverters, Single Phase Inverters

৳ 67,493 ~~৳ 70,193~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The Crown Micro VOLTMORE-VMGI-5KW-SP is a high-performance single-phase on-grid solar inverter designed for residential and small commercial solar systems. Delivering peak efficiency of 98.3% and Euro efficiency of 97.9%, it ensures maximum energy conversion and reliable long-term use. With an IP65-rated enclosure and optional Wi-Fi/4G communication, it provides both durability and smart monitoring features.

Key Benefits

High efficiency: 98.3% maximum and 97.9% Euro efficiency.
Wide MPPT voltage range (80–560V DC) supports flexible PV configurations.
Compact, transformer-less design with natural convection cooling.
IP65 protection ensures reliable outdoor performance.
Integrated DC switch and protections: anti-islanding, overcurrent, reverse polarity, surge, and insulation detection.
Wi-Fi/4G communication optional for remote monitoring.
Quick AC output terminal for easy installation.
10-year warranty guarantees long-term support and reliability.

At a glance

BrandCrown Micro

ModelVMGI-5KW-SP

MPPT1

Rated power5000 VA / 5000 W

Max efficiency98.3%

ProtectionIP65

Quote this system

General

Model VMGI-5KW-SP

DC Switch Yes

Topology Transformer-less

PV / DC Input

Max. DC Voltage 600 V

Nominal DC Voltage 380 V

Start-up Voltage 120 V

MPPT Voltage Range 80–560 V

Number of MPPTs 1

Strings per MPPT 1

Max. Input Current per MPPT 15 A

Max. Short-Circuit Current per MPPT 18 A

AC Output & Grid

Rated Power 5000 VA / 5000 W

Nominal AC Output Power 5000 W

Max. AC Apparent Power 5500 VA

Nominal AC Voltage 230 V L-N

AC Grid Frequency Range 50 Hz / 60 Hz ± 5 Hz

Max. Output Current 24 A

Power Factor 0.8 leading – 0.8 lagging

THDi <3%

Output Overcurrent Protection Yes

DC/AC Surge Protection DC Type III / AC Type III

AC Short Circuit Protection Yes

AC Output Terminal Type Quick Connector

Efficiency

Max. Efficiency 98.3%

European Efficiency 97.9%

Protection

Anti-Islanding Protection Yes

DC Reverse Polarity Protection Yes

Insulation Detection Yes

IP Rating IP65

Communication & Display

Communication RS-485 / Wi-Fi / 4G

Display LCD / Bluetooth + App

Physical & Environmental

Dimensions 380 × 390 × 150 mm

Weight 12 kg

Operating Temperature -25°C to +60°C

Cooling Natural Convection

Max. Operating Altitude 4000 m

Operating Humidity 0–100%

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: VMGI-5KW-SP
DC Switch: Yes
Topology: Transformer-less
Max. DC Voltage: 600 V
Nominal DC Voltage: 380 V
Start-up Voltage: 120 V
