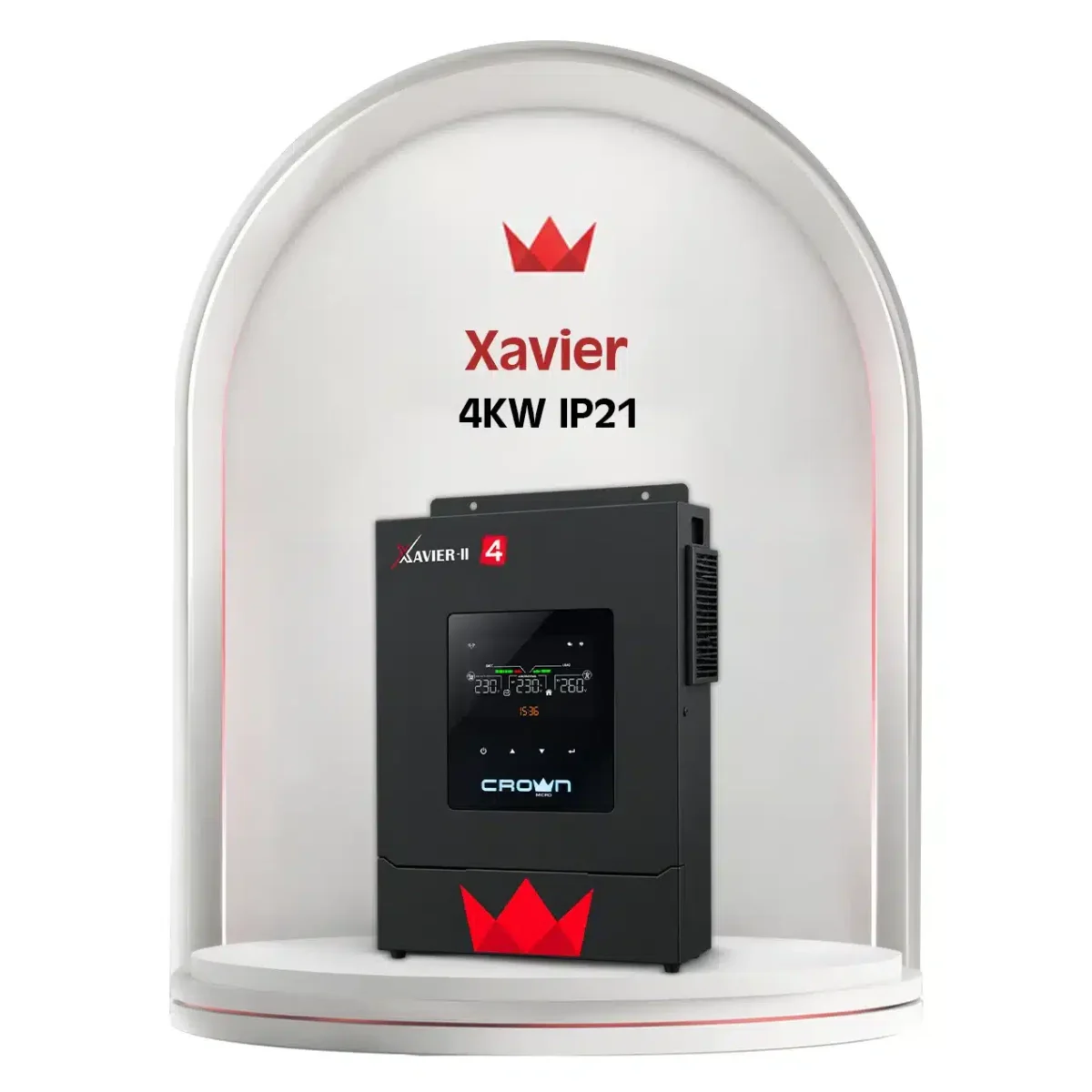

Crown Micro XAVIER-II-4KW 24V PV-5000W MPPT Solar Inverter

Name: Crown Micro XAVIER-II-4KW 24V PV-5000W MPPT Solar Inverter
Brand: Crown Micro
SKU: ST-XAVIER-II-4KW
Price: 59880 BDT
Availability: InStock

4000 VA / 4000 WRated power

24 VDCBattery

93%Max efficiency

Key features

Pure sine MPPT inverter, 93% eff
Wide PV input 60–450VDC window
Dual outputs for load management
Built-in BMS & Wi-Fi features
CrownMicro XAVIER-II-4KW 24V PV-5000W

Model: XAVIER-II-4KW
Category: Solar Inverters, Off-Grid Inverters, Single Phase Inverters

৳ 59,880 ~~৳ 62,275~~

Save 3% • Prices in BDT • Installation quoted separately

In Stock

Nationwide deliveryDelivery timelines confirmed with your order

Genuine productWarranty as per manufacturer terms

Need installation?Request a site assessment

The CrownMicro XAVIER-II-4KW 24V PV-5000 is a high-performance pure sine wave inverter with MPPT solar charging capability. It offers a wide PV input range of 60–450VDC, a powerful 120A MPPT controller, and dual output design for smart load management. With a peak efficiency of 93%, built-in BMS, and Wi-Fi connectivity, it provides a reliable and user-friendly solar power solution for both residential and commercial applications.

Key Benefits

For a complete solar system, pair the CrownMicro XAVIER-II-4KW PV-5000W with premium solar panels and a properly sized 24V battery bank. Configure for self-consumption, backup, or office/shop loads using its integrated communications and dual-output logic.

At a glance

BrandCrown Micro

ModelXAVIER-II-4KW

Rated power4000 VA / 4000 W

Battery24 VDC

Max efficiency93%

Quote this system

General

Model XAVIER-II-4KW

All-In-One Hub inverter + 120 A MPPT + AC charger with clean, pure sine output.

User-Friendly color touch display, anti-dust design, USB/RS-232, Wi-Fi ready.

PV / DC Input

PV Input Voltage Range 60–450 VDC

Max. PV Input Current 27 A

Wide PV Window 60–450 VDC allows long PV strings and early startup in low light.

AC Output & Grid

Rated Power 4000 VA / 4000 W

Input Voltage 230 VAC

Dual Output smart load management separates essential vs. non-essential circuits.

Battery

Battery Voltage 24 VDC

Max. Charge Current 120 A

Battery-Independent Design operate from PV/AC now; add a 24 V battery later for backup and time-shifting.

Efficiency

Max. Efficiency 93%

Communication & Display

Communication Wi-Fi / RS-485 / CAN

Physical & Environmental

Dimensions (D*W*H) 107×322.6×420.3 mm

Weight 9.5 kg

Operating Temperature -10°C to 50°C

Specifications are based on manufacturer datasheets and may change without notice. Confirm critical values with our engineering team before ordering.

Technical specifications

Model: XAVIER-II-4KW
All-In-One Hub: inverter + 120 A MPPT + AC charger with clean, pure sine output.
User-Friendly: color touch display, anti-dust design, USB/RS-232, Wi-Fi ready.
PV Input Voltage Range: 60–450 VDC
Max. PV Input Current: 27 A
Wide PV Window: 60–450 VDC allows long PV strings and early startup in low light.
