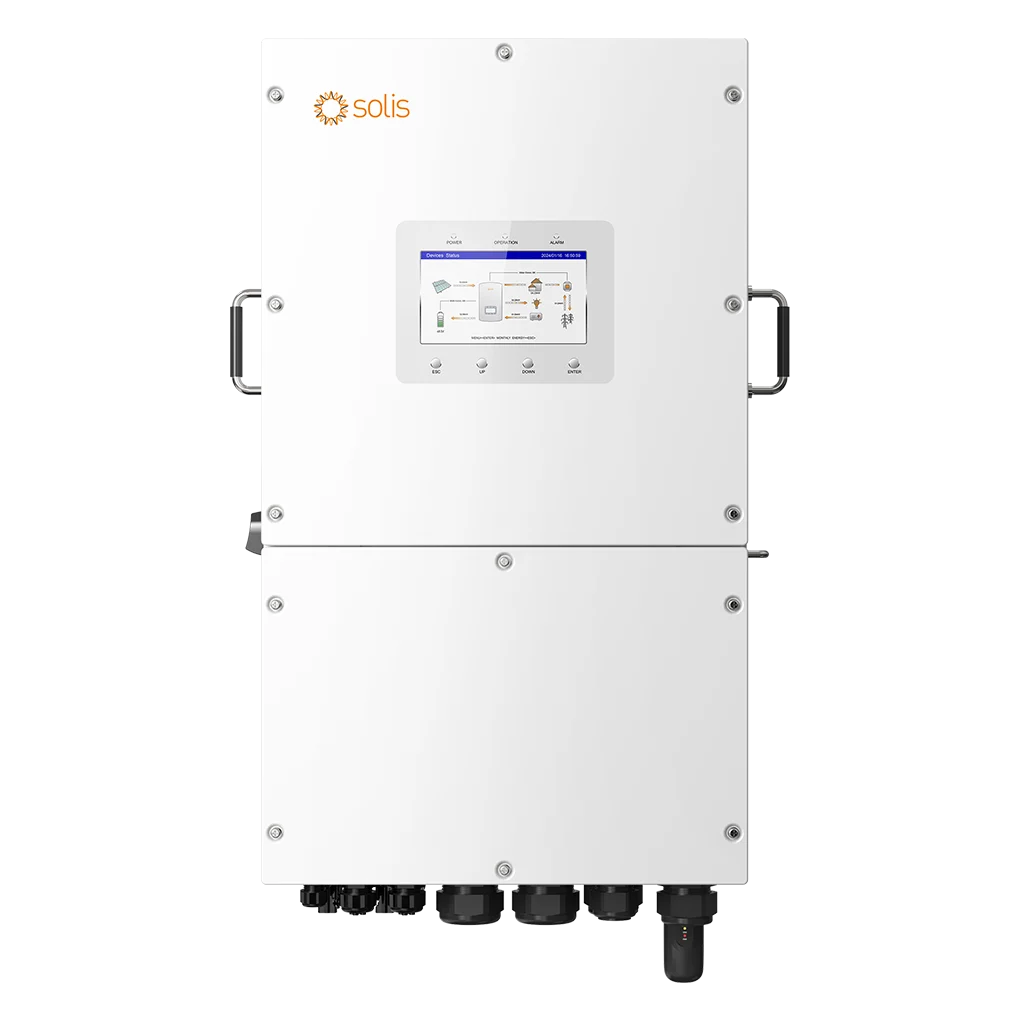

Solis 16kW Single Phase Hybrid Inverter S6-EH1P16K03-NV-YD-L

The Solis 16kW Single Phase Hybrid Inverter S6-EH1P16K03-NV-YD-L is a next-generation low-voltage hybrid inverter engineered for high-performance residential, villa, commercial, office, agricultural, and industrial solar power systems. Designed with advanced hybrid technology, it intelligently manages solar energy, battery storage, grid power, and generator input to deliver maximum energy independence and lower electricity costs.

Supporting a recommended PV array size of 32kW and 25.6kW maximum usable PV input, the inverter allows users to harvest more solar energy throughout the day. Its 3 independent MPPT trackers and 6 PV string inputs improve energy production even when solar panels are installed on different roof orientations or experience partial shading. The inverter also supports high-current PV modules, making it compatible with the latest generation of high-power solar panels. These specifications are provided in the official Solis datasheet.

Built for modern energy storage systems, the Solis 16kW Single Phase Hybrid Inverter S6-EH1P16K03-NV-YD-L is compatible with 40V–60V Lithium-ion and Lead-acid batteries. It provides up to 290A maximum charge/discharge current, ensuring fast battery charging and reliable backup performance. Users can customize battery reserve capacity to prioritize critical loads during power outages while maximizing self-consumption of solar energy.

One of the standout features of this inverter is its ultra-fast backup switching time of less than 10 milliseconds, allowing connected appliances to continue operating almost seamlessly during grid failures. In off-grid mode, the inverter can deliver 200% overload capacity for up to 10 seconds, making it suitable for starting heavy loads such as water pumps, refrigerators, air conditioners, and electric motors.

The inverter also supports generator integration, enabling flexible operation in areas where grid electricity is unreliable. With intelligent generator control, automatic charging, and support for existing grid-tied PV systems, users can build highly reliable hybrid power solutions without replacing existing solar installations. Additionally, up to 6 inverters can operate in parallel, making future system expansion simple and cost-effective.

For monitoring and management, the inverter features a 7-inch industrial-grade LCD touchscreen, built-in Bluetooth, and compatibility with the SolisCloud platform. Users can remotely monitor solar production, battery status, electricity consumption, fault alarms, and system performance using a smartphone or computer. AI-powered optimization and remote diagnostics further simplify maintenance and improve system efficiency.

Designed to withstand harsh environments, the inverter features an IP66-rated enclosure, intelligent fan cooling, surge protection, reverse polarity protection, ground fault monitoring, and optional AFCI protection. With a maximum efficiency of 97.6% and 97.0% European efficiency, it ensures reliable, long-term operation while maximizing the return on your solar investment.

Whether you are planning a high-capacity home solar system, a commercial rooftop installation, a factory backup solution, or an agricultural energy storage project, the Solis 16kW Single Phase Hybrid Inverter S6-EH1P16K03-NV-YD-L delivers exceptional performance, intelligent energy management, and dependable backup power.

Key Features

• Brand: Solis
• Model: S6-EH1P16K03-NV-YD-L
• Rated Output Power: 16kW
• Single Phase Hybrid Solar Inverter
• Supports 32kW Recommended PV Array
• 25.6kW Maximum Usable PV Input
• Maximum PV Voltage: 550V
• 3 MPPT Trackers
• 6 PV Inputs
• Compatible with 40V–60V Lithium-ion & Lead-acid Batteries
• Maximum Charge/Discharge Current: 290A
• Maximum Efficiency: 97.6%
• Generator Compatible
• Smart Load Management
• Less than 10ms UPS Switching
• Supports PV-only Off-grid Operation
• Parallel Operation Up to 6 Units
• SolisCloud Smart Monitoring
• AI Performance Optimization
• 7-inch LCD Touchscreen
• Bluetooth Built-in
• RS485 Communication
• Optional Wi-Fi, LAN & Cellular
• Intelligent Fan Cooling
• IP66 Protection
• Surge Protection
• Reverse Polarity Protection
• Ground Fault Monitoring
• Optional AFCI
